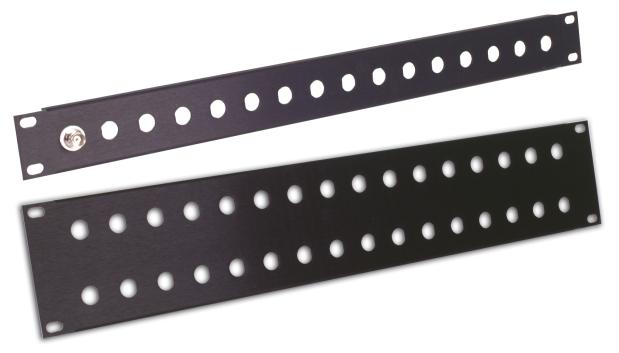

AB/AD/AHB Series of Termination Panels
1/16” aluminum panels, flanged, line grained and black anodized finish. ADE9P-1 has 16 cutouts for DB-9 connectors. AHBNP panels are hinged and feature holes for multiples of 16 BNC connectors with a 4” lacing bar
| P/N | RU | HEIGHT (in) x 19 | CONNECTOR TYPES |
| ABNP-1 | 1RU | 1.75 | 16 0.470 x 0.500 "D" |
| ABNP-2 | 2RU | 3.50 | 32 0.470 x 0.500 "D" |
| AHBNP-1 | 1RU | 1.75 | 16 0.470 x 0.500 "D" |
| AHBNP-2 | 2RU | 3.50 | 32 0.470 x 0.500 "D" |
| ADE9P-1 | 1RU | 1.75 | 16 DB-9 |

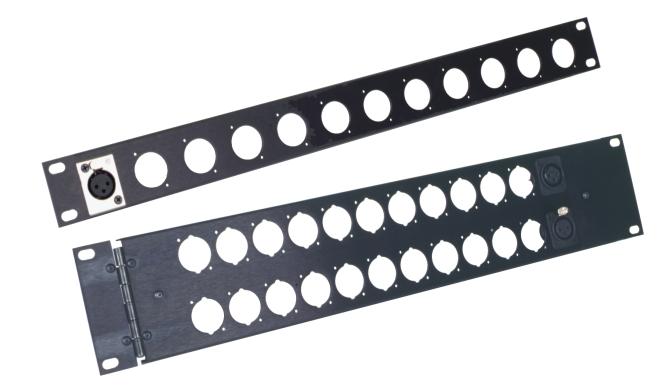

AX Series - AX4NP-2
XLR Termination Panels 1/16” aluminum panels, flanged for strength, line grained and black anodized, 4-40 tapped holes, 4-40 x 3/8” flat head Phillips screws included. Hinged panels (AHX Series) feature a 4” lacing bar (XLR mounting hardware included.)
| P/N | HEIGHT (in) RU x 19 | CONNECTOR TYPES |
| AX2NP-1 | 1RU 1.75 | 8 "D" series XLR M/F |
| AX3NP-1 | 1RU 1.75 | 12 "D" series XLR M/F |
| AX4NP-1 | 1RU 1.75 | 16 "D" series XLR M/F |
| AX2FP-1 | 1RU 1.75 | 8 "P" series XLR F |
| AX3FP-1 | 1RU 1.75 | 12 "P" series XLR F |
| AX4FP-1 | 1RU 1.75 | 16 "P" series XLR F |
| AX2MP-1 | 1RU 1.75 | 8 "P" series XLR M |
| AX3MP-1 | 1RU 1.75 | 12 "P" series XLR M |
| AX4MP-1 | 1RU 1.75 | 16 "P" series XLR M |
| AX4NP-2 | 2RU 3.50 | 16 (2x8) "D" series XLR M/F |
| AXNP-2 | 2RU 3.50 | 32 "D" series XLR M/F |
| AXFP-2 | 2RU 3.50 | 32 "P" series XLR F |
| PNB* | Blank Plate | "D" series Blank |
| PBB* | BNC Plate | "D" series BNC |
| PRB* | RCA Plate | "D" series RCA |
| PDE* | DB-9 Plate | "D" series DB-9 |
| PRJ* | RJ-45 Plase | "D" series RJ-45 |
| HINGED PANELS | ||
| P/N | HEIGHT (in) RU x 19 in L | CONNECTOR TYPES |
| AHXNP-1 | 1RU (1.75) | "D" series Neutrik XLR M/F x 12 |
| AHXNP-2 | 2RU (3.50) | "D" series Neutrik XLR M/F x 24 |
Individual plates give the ability to mount other types of connectors on the XLR panels

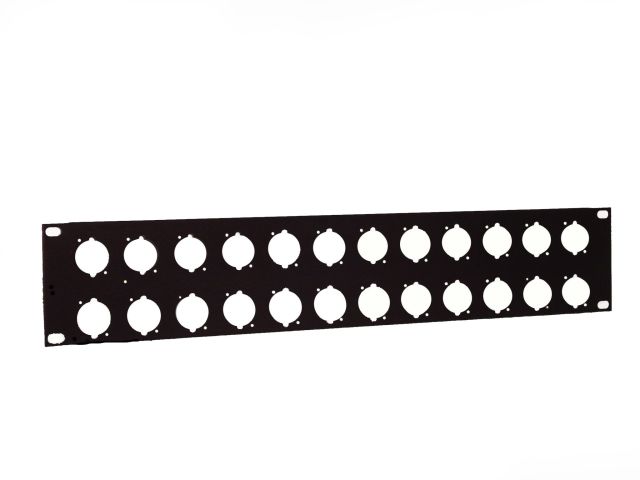

AX3NP-2 is a 2RU XLR Panel with 24 XLR holes (2x12). It is made from 1/16” aluminum, flanged for strength, line grained and black anodized. The panel comes with 4-40 threaded holes as well as 4-40 x 3/8” long Phillips flat head screws.

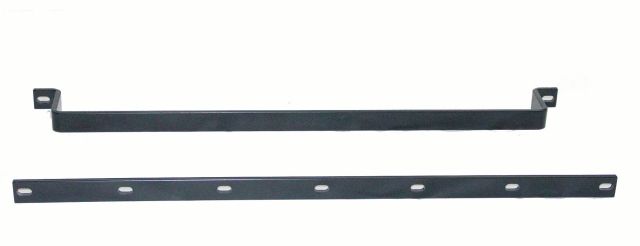

ALB Series Lacing Bars
ALB series of lacing bars are manufactured from 3/16” thick aluminum and are powder coated with black semi-gloss finish. The ALB series of lacing bars are sold in packages of 5 and are 3/4” wide x 19” long
| P/N | DESCRIPTION |
| ALB | Flat aluminum lacing bar |
| ALB2 | 2" offset aluminum lacing bar |
| ALB4 | 4" offset aluminum lacing bar |
